This new and unique tool uses magnetism to measure the thickness of any non-ferrous material.

Especially designed for Luthier by market feedback, allows you to measure inside the fully assembled musical instruments, and also quickly test the thickness during the building of your new instruments.

Availability: This product is no longer available

he-fm-2014

$358.42

Add to cart


Details

Measurements are made when its magnetic probe is held or scanned on one side of the test surface and a small target magnetic ball is dropped inside the instrument. The probe measures the distance between the probe tip and target ball.

The user can use one of the two balls provided (6,0 ​​or 10,0 mm in diameter) according to the needs, the maximum measurable thickness is 8.1 mm, the accuracy is 0.01mm.
The measurement is continuous and, thanks to the unique calibration system, any soft material can be applied to the sensor to prevent it from scratching instruments already varnished.

Marconi Lab HE-FM 2014 creates a new way to record the instruments data and make professional presentation for your customer!
Max thickness 8,1 mm
Range for 6mm ball: 0-6,1 mm
Range for 10mm ball:0-8,1 mm
Technology: Hall With neodimium bias magnet
Temperature range: 10-40ø c
Accuracy 1\%
Resolution 0.01 mm
USB 1.0 e 2.0 HID connectivity
Plug and Play on: windows xp, windows 7, windows 7 64 bit

New hardware with faster data processing.

Smooth spherical probe for better operations.

Three accuracy steps: 0.01mm or 0.05mm or 0.1 mm

Fast calibration even at runtime

The system automatically recognizes the ball we are using

Firmware upgradable by user

Full compliant with our latest software and with its advanced features

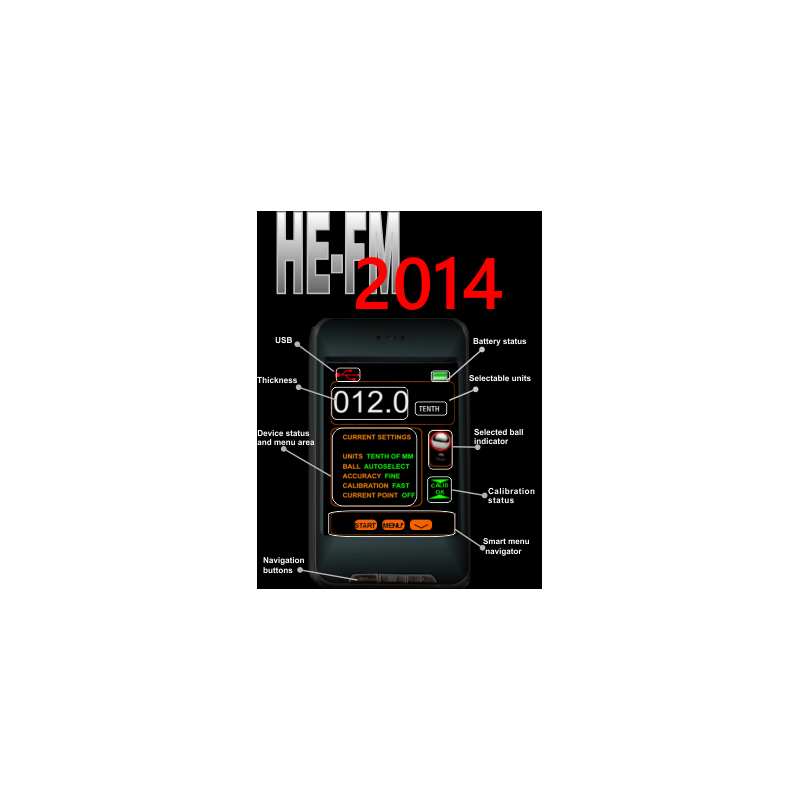

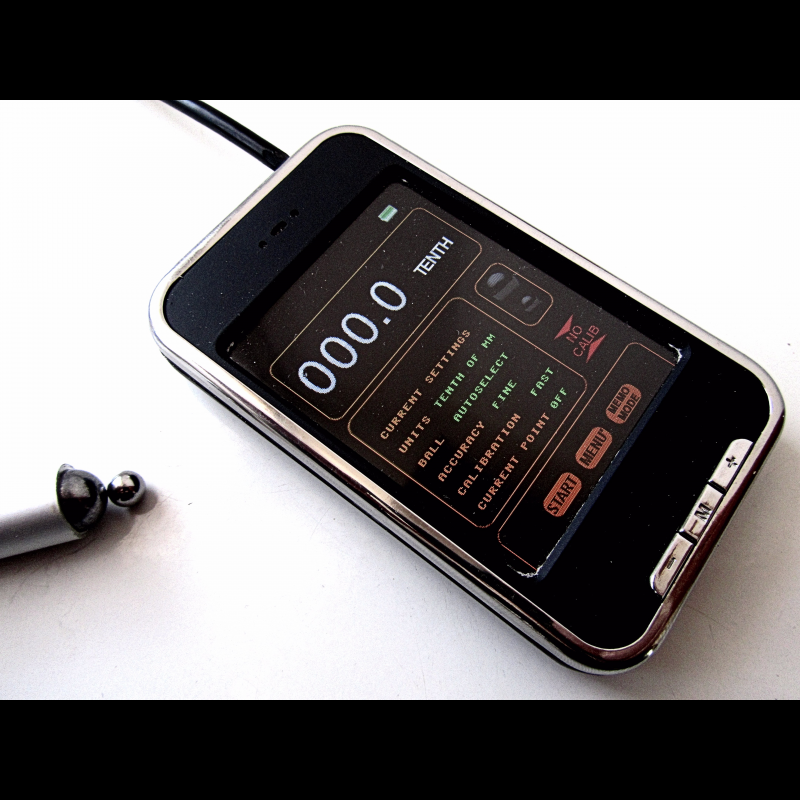

The color lcd display improve the user comfort and provide an online help.

HE-FM 2014 is portable and can work as standalone unit or connected to a PC.

PIC-Thick software

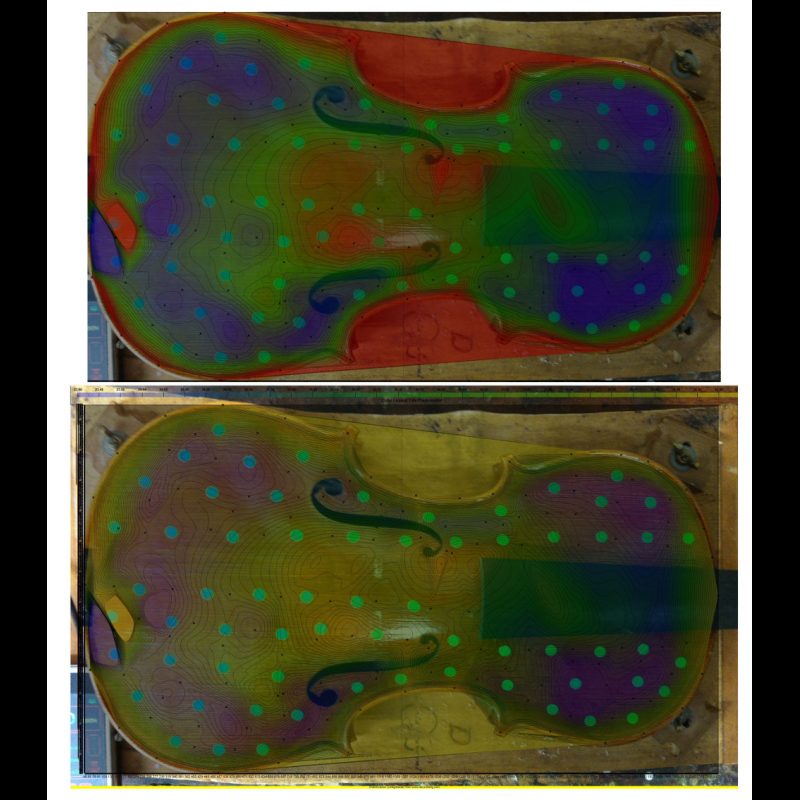

By the software (included), you can write the measures taken directly on the digital images of the instruments and also create colorful maps of the thickness*, and save files containing the measures and the related coordinates in an Excel and other compatible software format.

The PIC-Thick software works in association with our thickness gage or by manual immision of the measures

When the HE-FM 2014 works without a PC, the measurements will be displayed on the color LCD, and stored in an internal nonvolatile memory, for use at a later time by the PC software.

It Stores up to 100 measures in a nonvolatile memory

Supply: Intermnal battery or USB

Built-in LiPo battery rechargeable by USB socket

Battery life: about 8 hours

*Available only in the "Pro" version of PIC-Thick

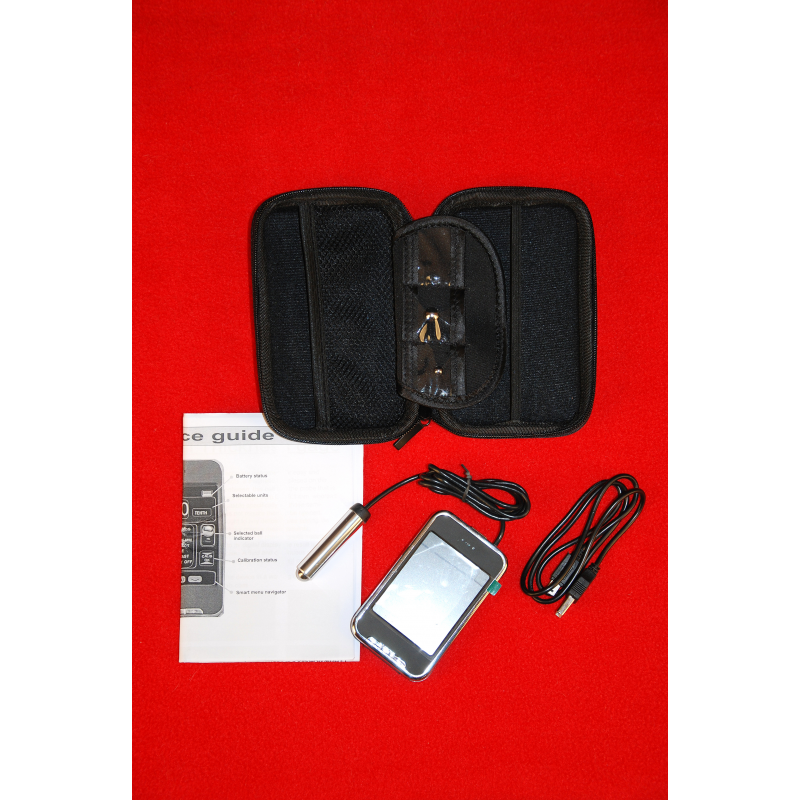

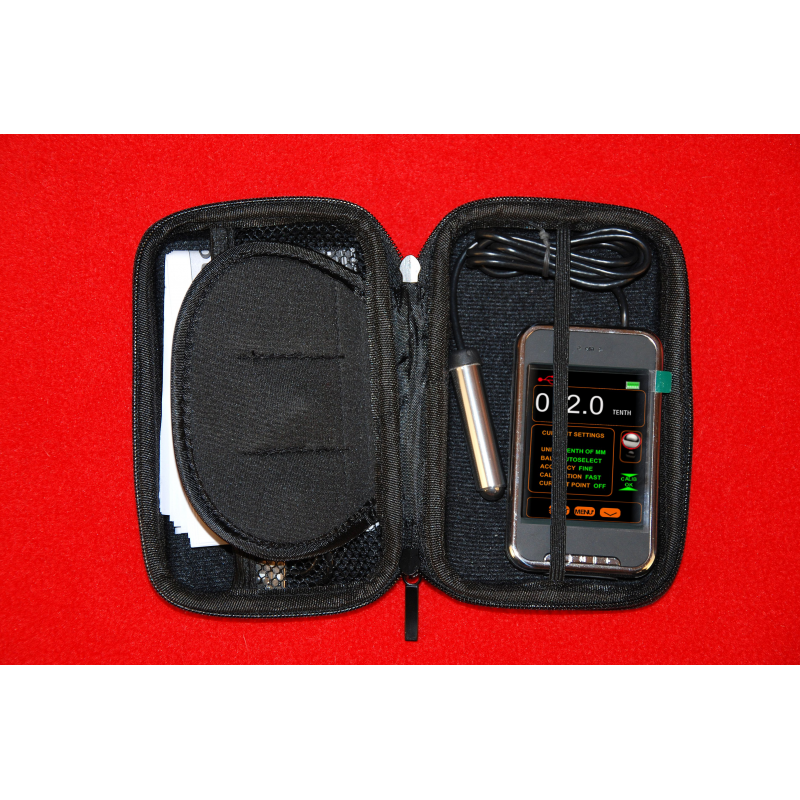

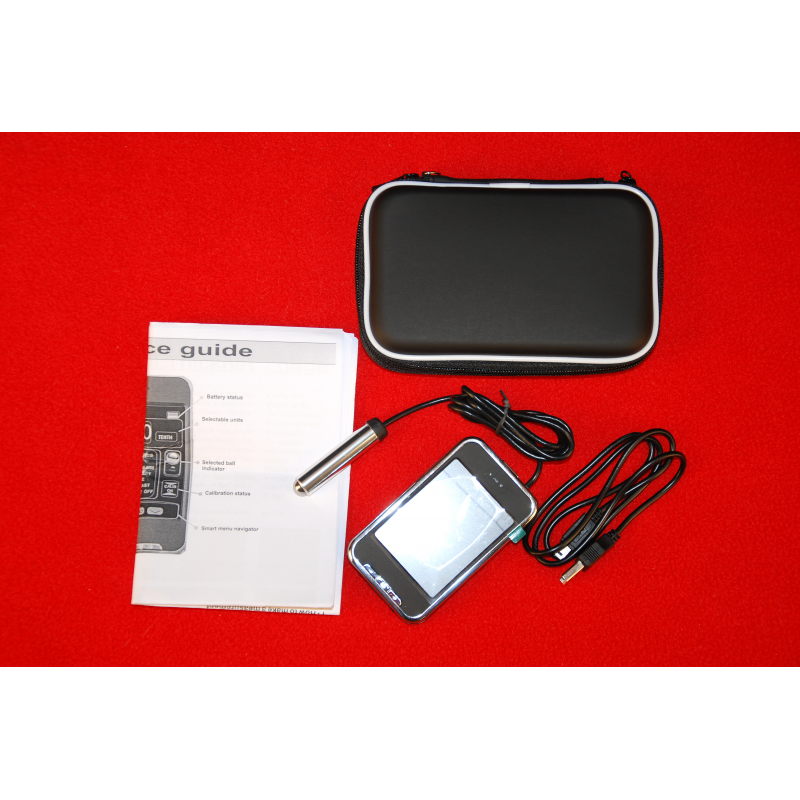

Included in the box:
HE-FM 2014 CPU
1 x 6,0 mm ball
1 x 10,0 mm ball
USB 2.0 Cable

Made in Italy
