HE-FMX -Magnetic digital thickness gauge-

HE-FMX -Magnetic digital thickness gauge-

HE-FMX -Magnetic digital thickness gauge-

This new and unique instrument uses magnetism to measure the thickness of any non-ferrous material

Particularly in the field of violin making, it becomes possible to measure the inside of already closed instruments without having to open them, or quickly view the thicknesses during the construction of new instruments/p>

he-fm-x

$435.68

Add to cart

Details

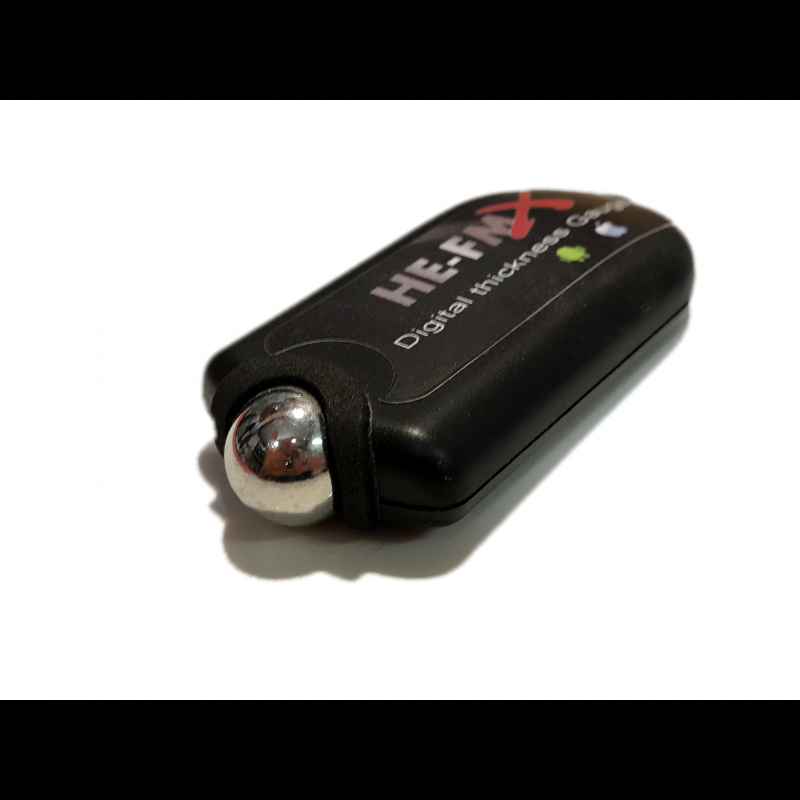

Operation is simple: place the small magnetic sensor on the surface and drop a magnetic sphere inside the instrumentbr />
The feeler gauge will measure the distance between the ball and the sensorbr />
The measurement is continuous and, thanks to the simple and fast calibration system, any soft material can be applied to the sensor, eliminating the risk of scratching already finished instruments. />
Marconi Lab HE-FMX creates a new way to document your instruments and create professional documents to present to customers!

Hall effect measurement technology

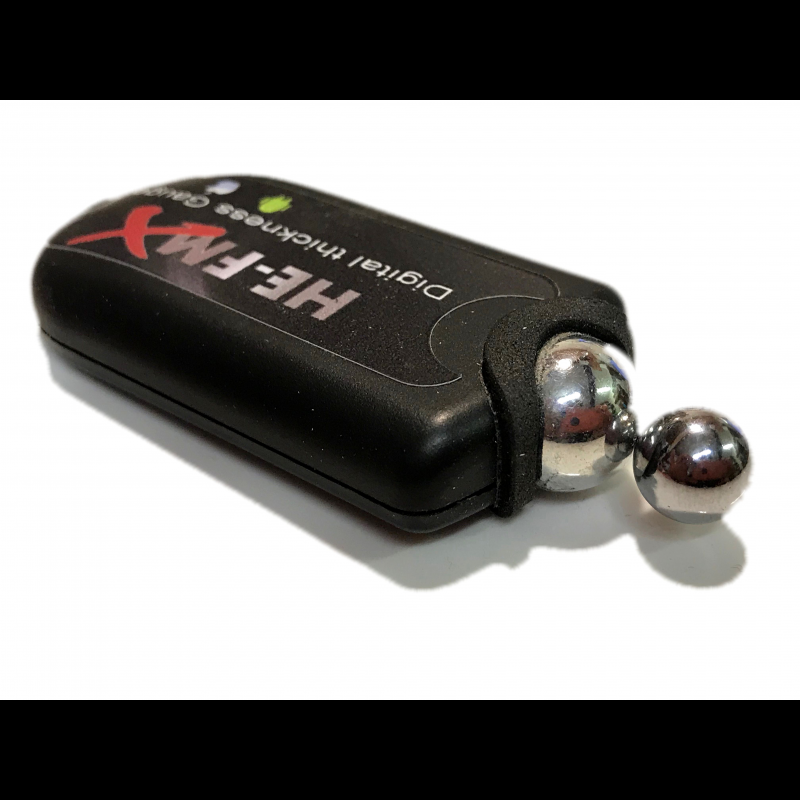

Measurable thickness: 0 - 12 mm using two different spheres supplied
Sphere 1 (Diameter 6.0 mm): 0 - 6.1 mm
Sphere 2 (Diameter 10.0mm): 0mm - 8.1mm
Sphere 2 (Diameter 12.7 mm): 0 mm - 12 mm

Accuracy: 0.01mm

Accuracy: 0.1mm*

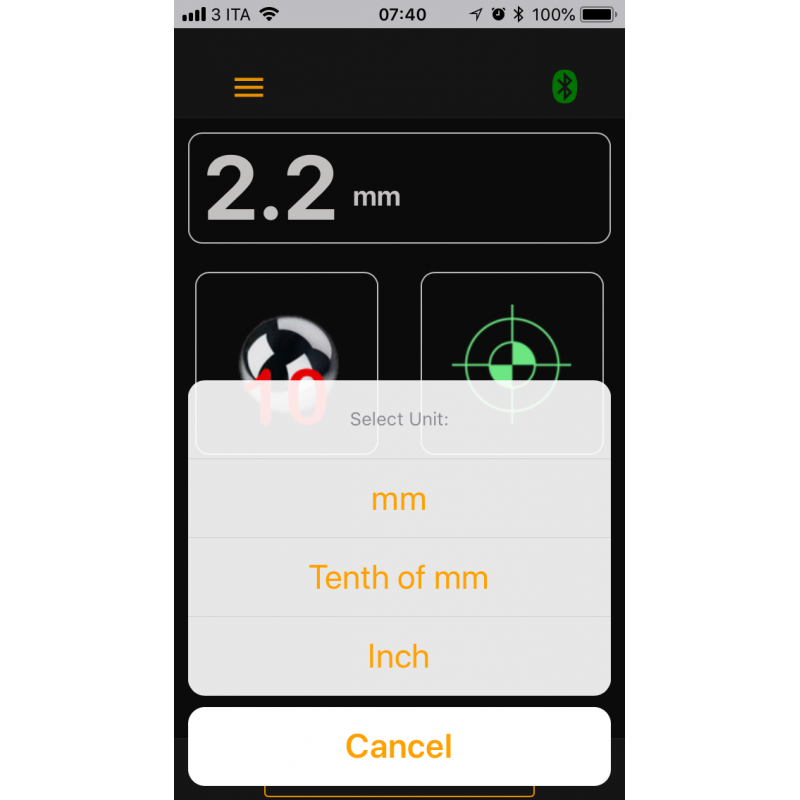

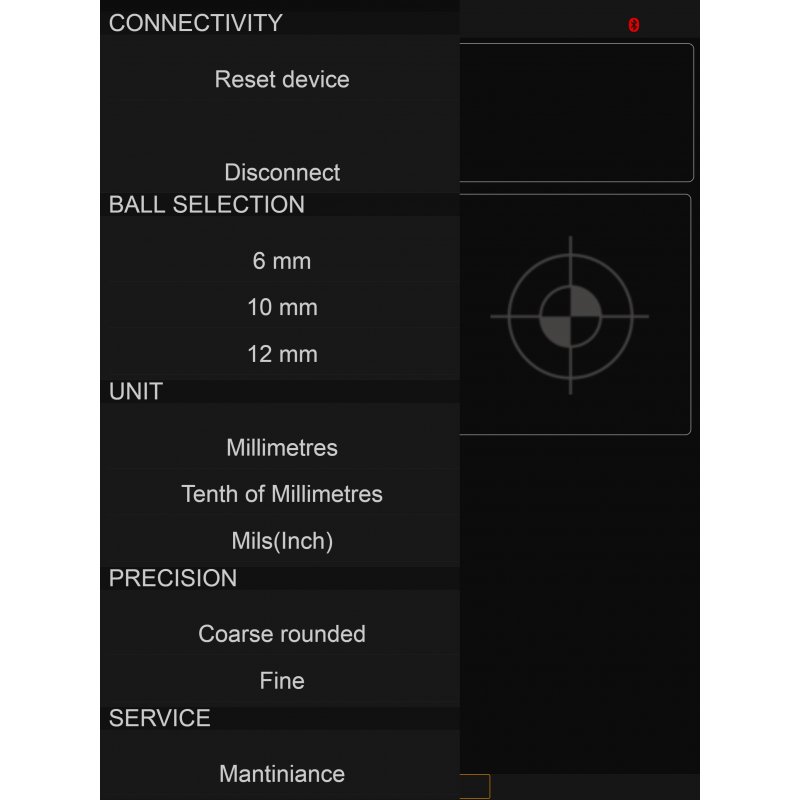

Measurement Standard: Metric or Inches selectable

Spherical probe for better operation…br />
Firmware upgradeable by the user

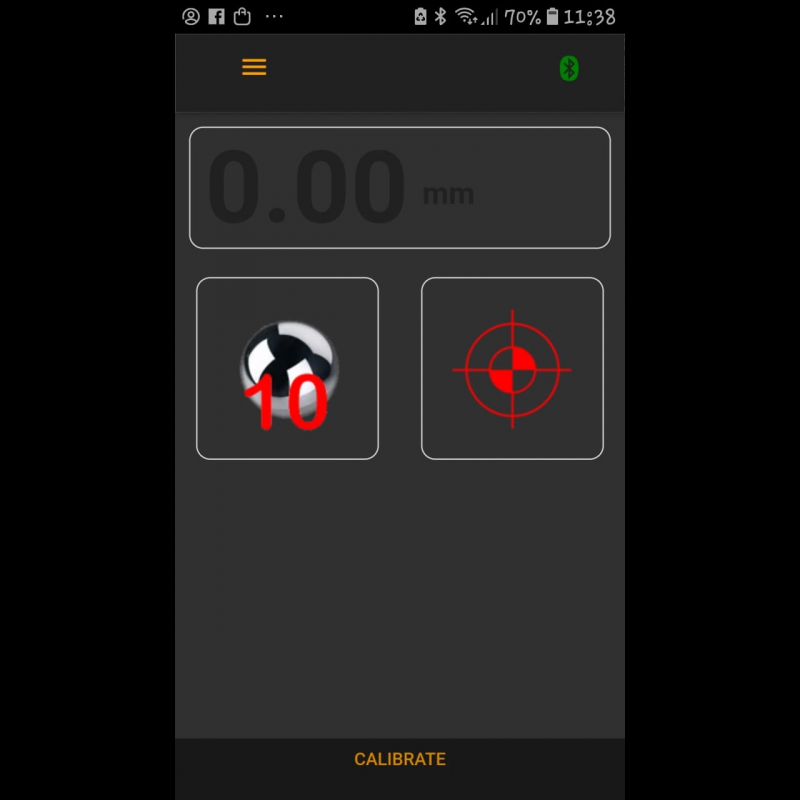

It can work connected to a mobile phone or connected to the Personal Computer via the supplied USB 2.0 cablebr />

Plug and Play on: Windows XP, Windows 7, Windows 7 64 bit

PIC-Thick function for software management of measurements

Thanks to the included software, it is possible to note the measurements taken directly on the jpeg images of the instrument we are analyzing

Possibility to create colored maps depending on the thicknesses, and also automatically create csv files (compatible with Excel and other software) containing the measurements and the relative coordinates

Operating temperature from 10øC to 40øC


The Set Comprises:

HE-FMX Digital Feeler Gauge (CPU)
Probe with 90.0 cm cable
A Sphere Diameter 6.0 mm
A Sphere Diameter 10.0 mm
A Sphere Diameter 12.0 mm
USB 2.0 cable
Power banks

All Marconi Lab products are designed and produced in Italy
