HTG 6 – Hall Effect Magnetic Thickness Gauge
The instrument for those who do not accept compromises between scientific precision and operational practicality. Designed to deliver reliable measurements even on delicate or inaccessible surfaces, it overcomes the limits of ultrasonic systems and ensures fast, repeatable, and safe results. With its color touchscreen display, internal memory for up to 500 readings, interchangeable probes, and data export via SD card or Wi-Fi/email, the HTG 6 makes thickness measurement a smooth and efficient process. Rugged and intuitive, it is the perfect tool for laboratories, quality control, and industrial production. With HTG 6 you are not just buying a gauge: you are investing in a reliable, long-lasting partner capable of supporting every analysis with maximum confidence in the results.

A new measurement technology

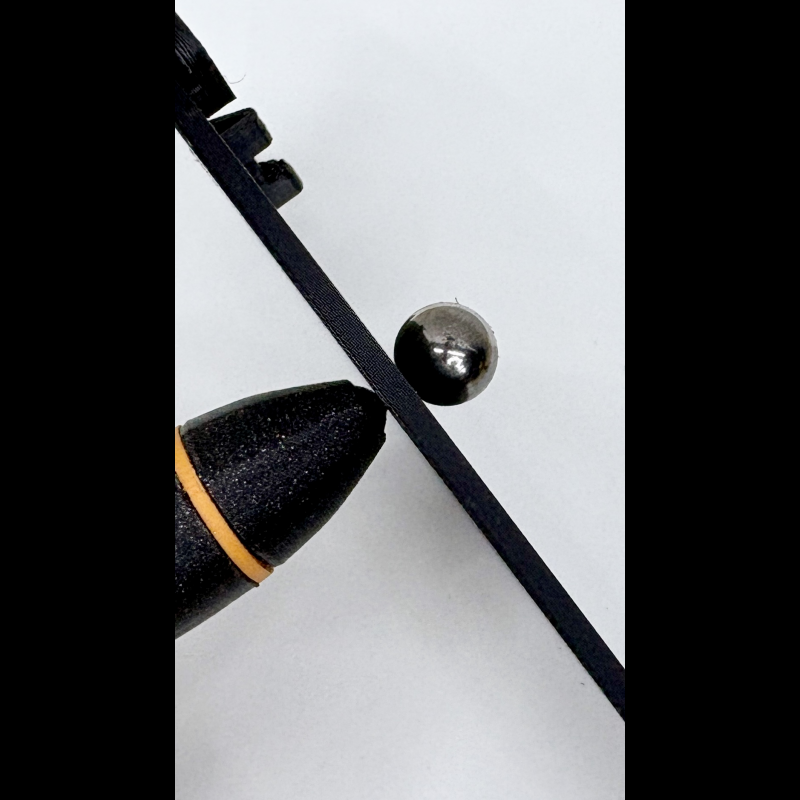

The HTG 6 uses the principle of magnetic attraction between a probe and a small sphere placed on the opposite side of the material. This solution eliminates the limits of ultrasonic or direct-contact systems: no coupling liquid required, no risk of scratches or indentations, and no alteration of the surface.

Versatility with interchangeable probes

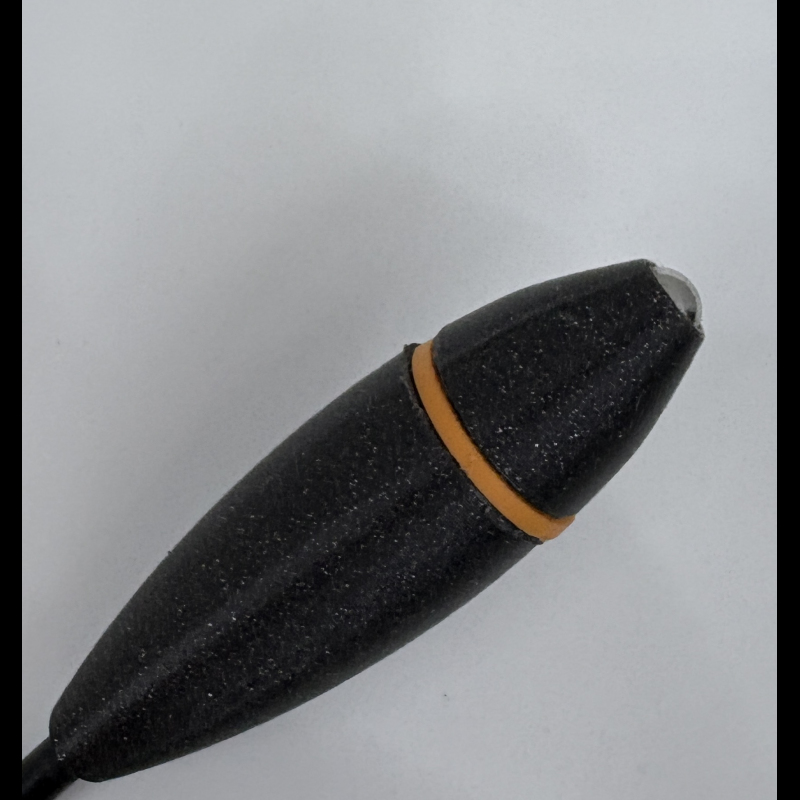

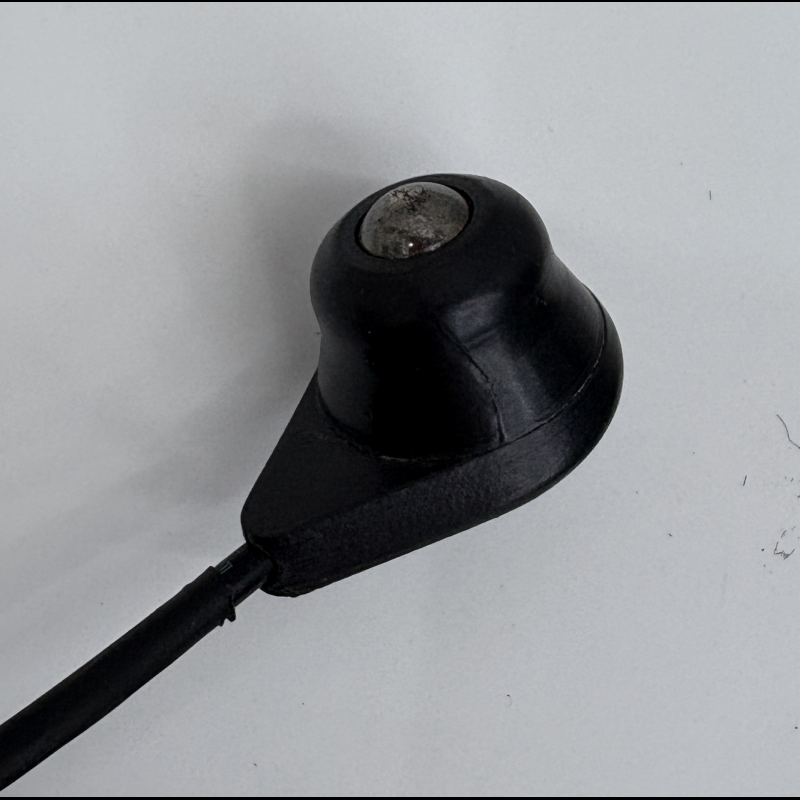

The system consists of a compact and robust control and display unit and interchangeable probes connected via aerospace-grade GX connector. The probes allow thickness measurements up to 19 mm and can be replaced quickly. Each probe change requires a simple recalibration, guided directly by the device.

Clear and intuitive interface

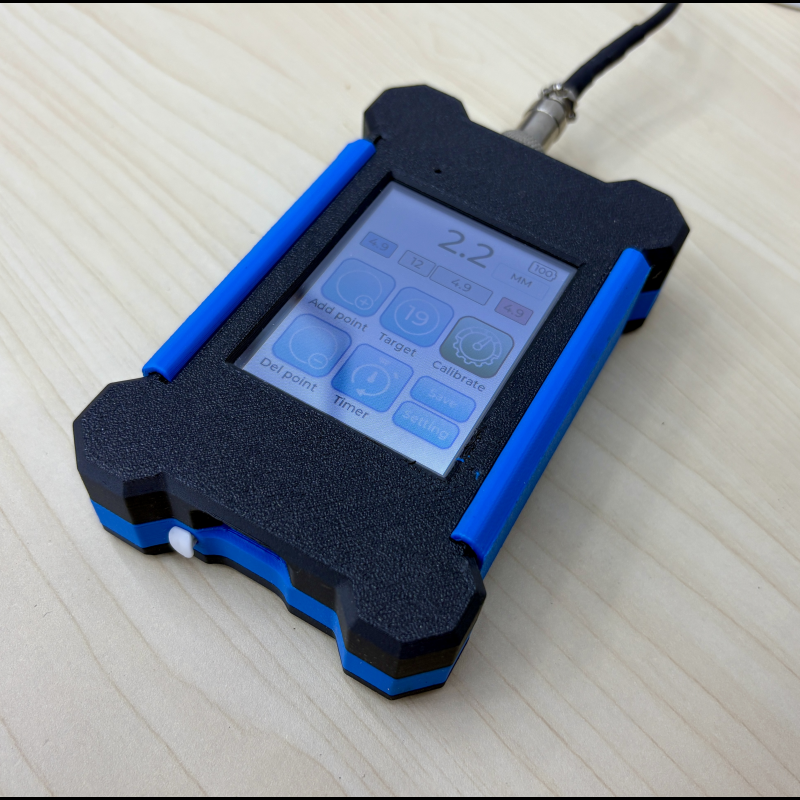

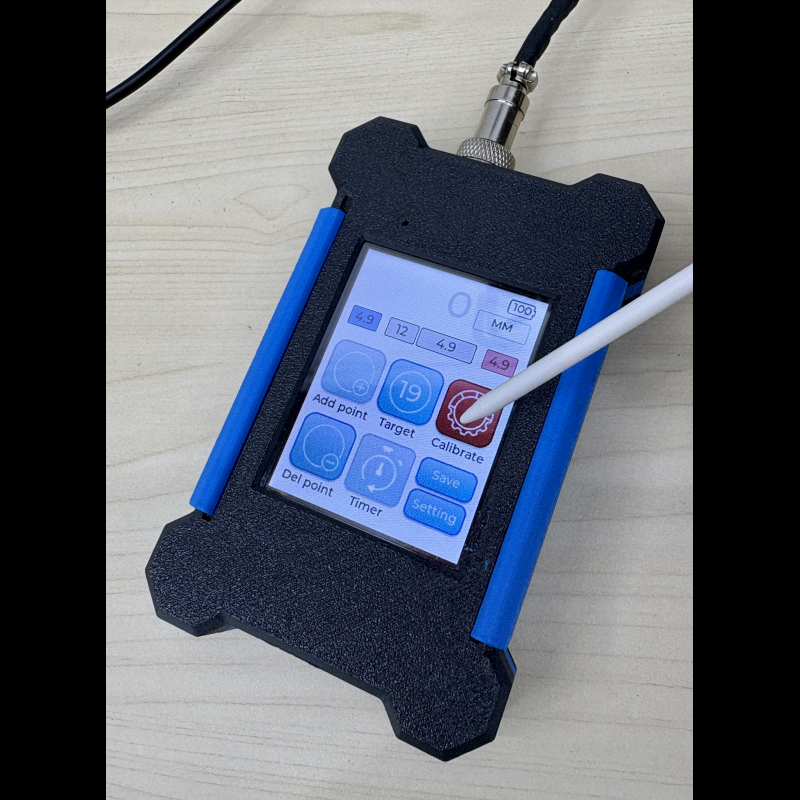

The large color resistive touchscreen can be used even with gloves. The menus are simple, measurements are displayed in real time, and units (mm, tenths, thousandths of an inch) can be switched instantly. Minimum and maximum thresholds with acoustic alarms can also be set.

Advanced data management

• Internal memory for up to 500 readings

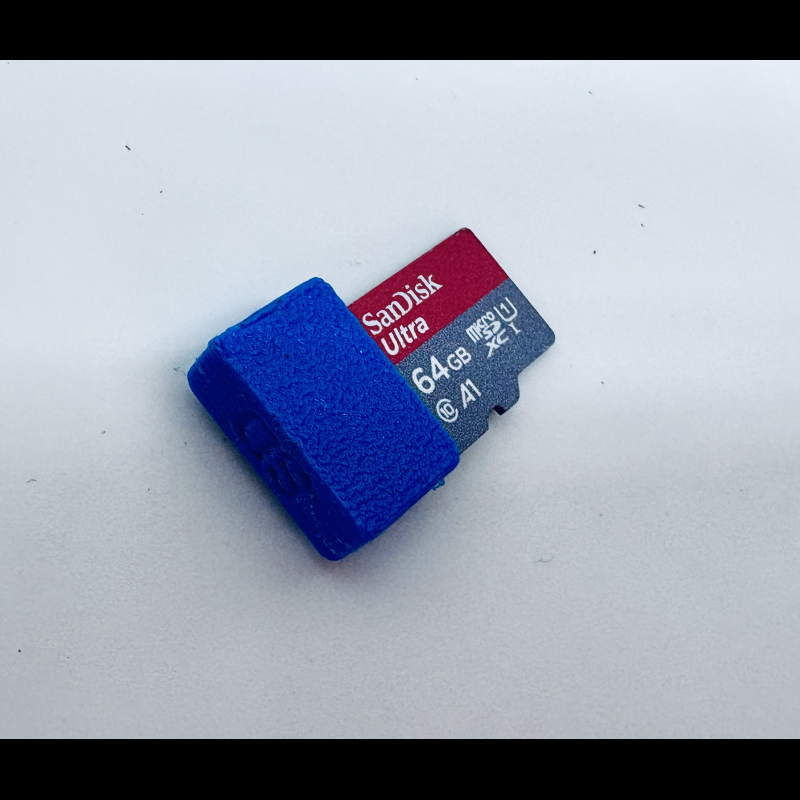

• Secure export to SD card in CSV format

• Direct sending via Wi-Fi or email

• Timer for automatic recording at regular intervals (1–60 seconds)

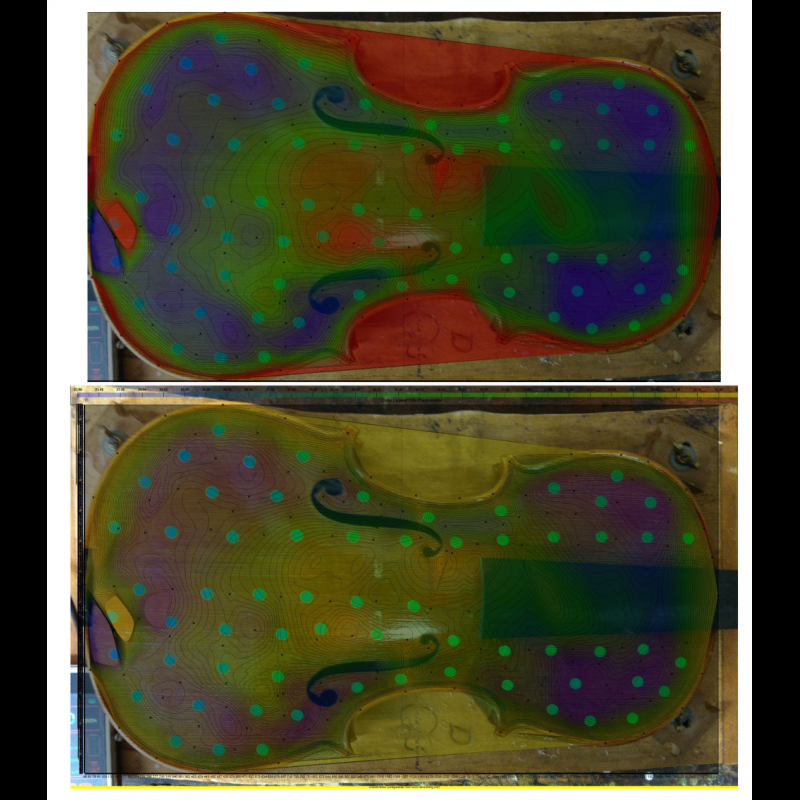

• Compatibility with PIC THICK 4 software for thickness distribution mapping

Accuracy guaranteed

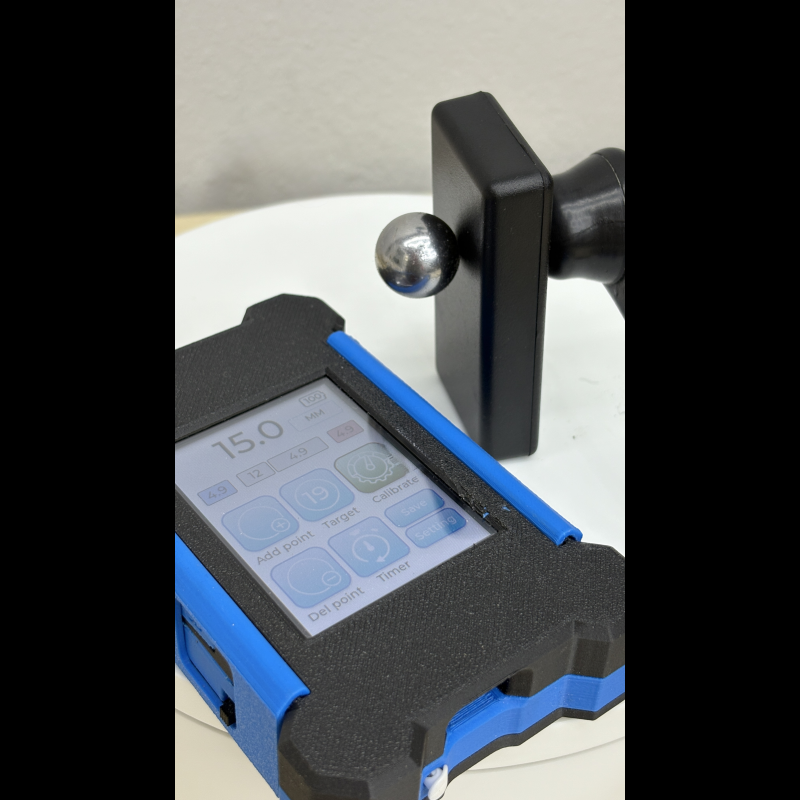

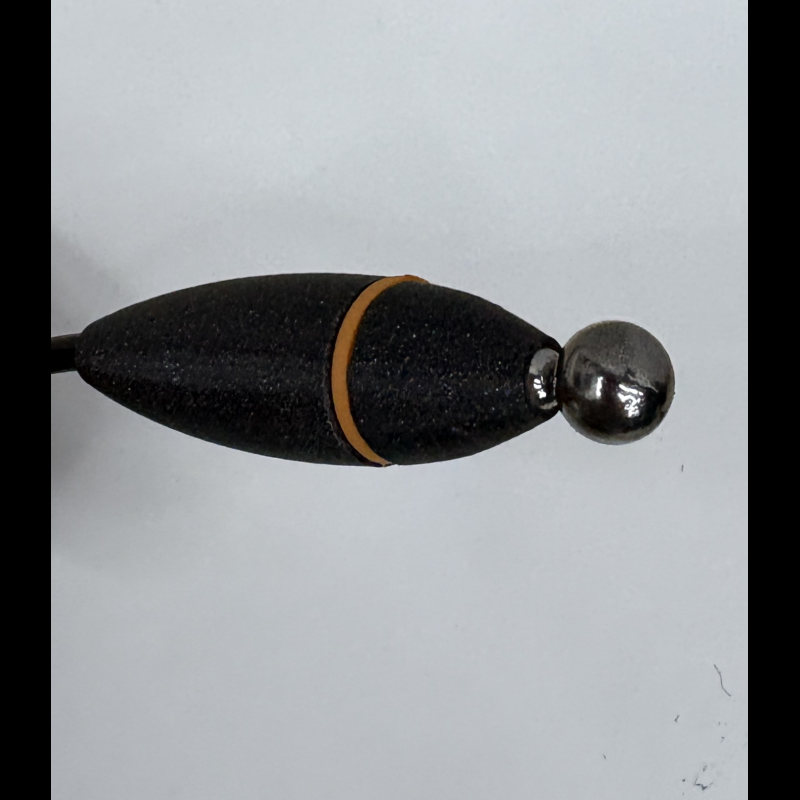

Guided calibration is fast and simple: select the correct sphere, position it on the probe, and confirm on the display with visual and acoustic feedback. From that moment the device is ready for reliable, repeatable measurements. Each probe or target change requires only a few seconds for recalibration.

Autonomy and robustness

• Rechargeable lithium-ion battery via USB-C

• Several hours of autonomy, usable even while charging

• Compact and resistant structure, suitable for industrial use

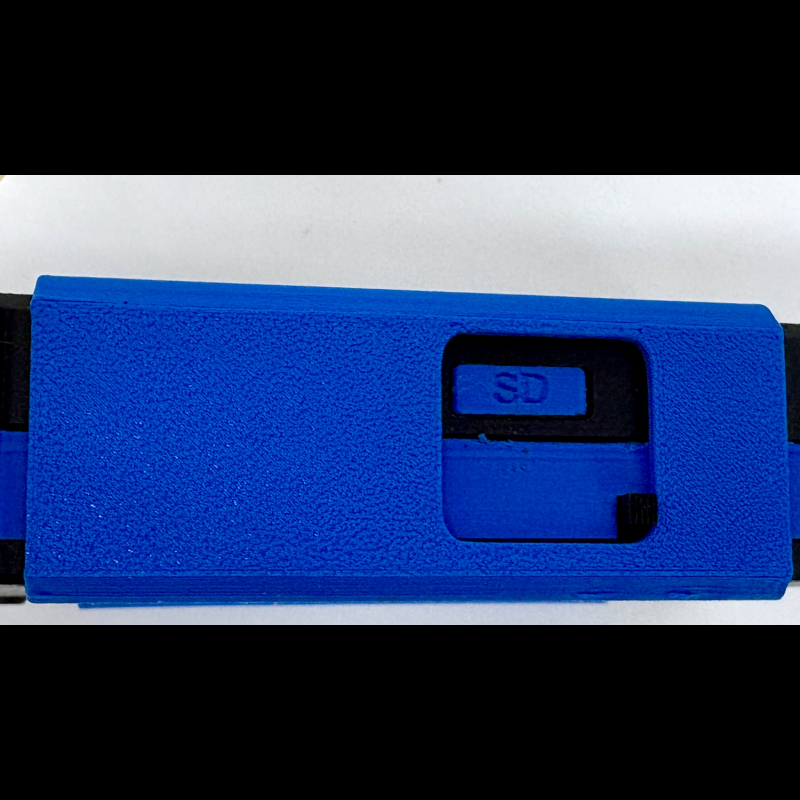

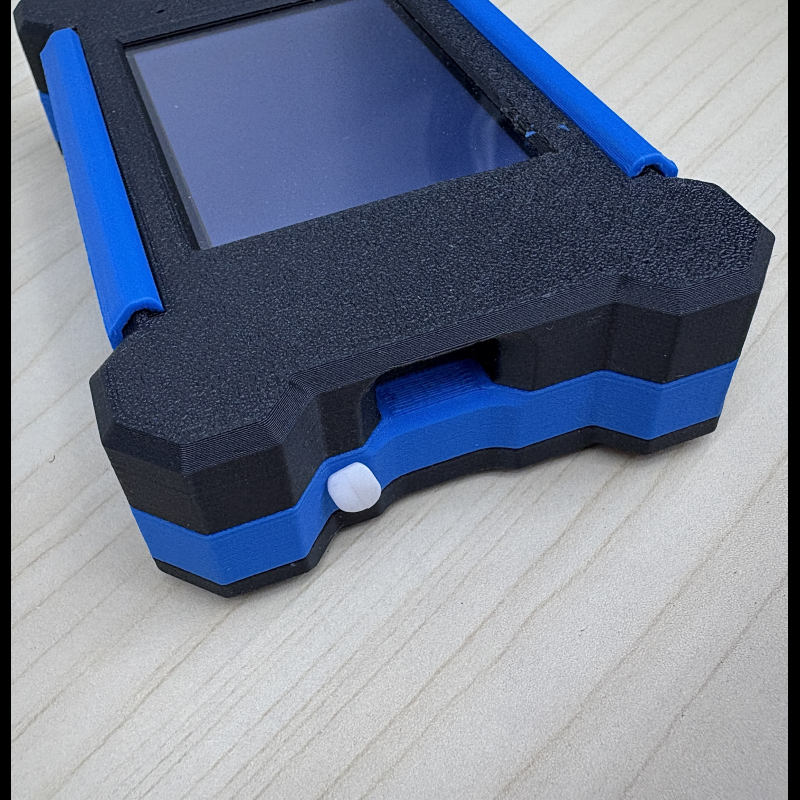

• Safety mechanism protecting the SD card and stored data during operation

Target users

• Research laboratories

• Industrial quality control

• Production of composites, plastics, glass, and thin metals

• Inspection of tanks, pipes, and closed chambers

• Applications on valuable surfaces where no damage is acceptable

In summary

With the HTG 6 you are not just buying a thickness gauge. You are introducing a reliable partner into your laboratory or production line, capable of guaranteeing:

• Precise, repeatable, and safe measurements

• Fast and efficient digital data management

• Ruggedness and ease of use

It is the ideal instrument for those who demand scientific precision combined with operational efficiency, today and in the future.
